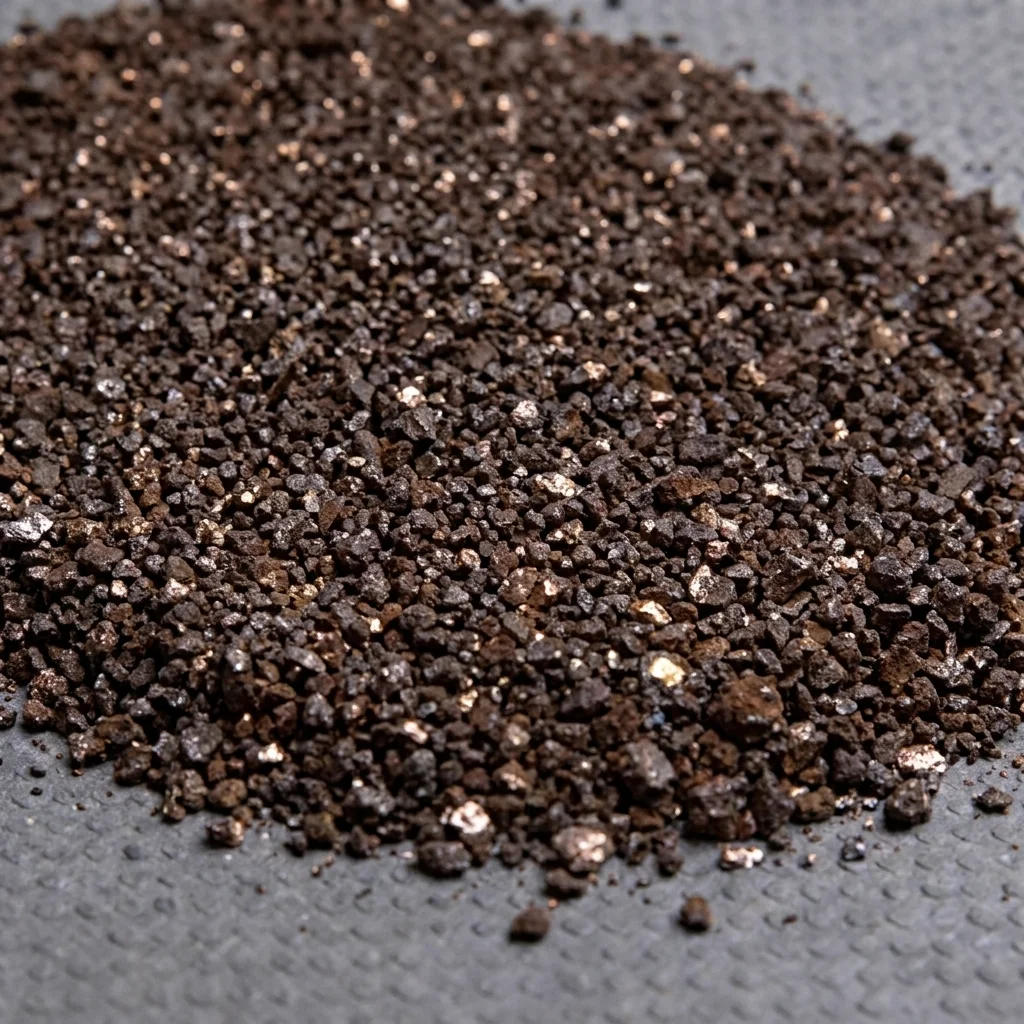

Copper Concentrate

Copper Concentrate from Pakistan

Copper concentrate is produced by crushing copper sulphide ore, grinding it to a fine particle size, and processing it through froth flotation circuits. Air bubbles selectively attach to hydrophobic copper sulphide mineral particles (chalcopyrite, bornite, chalcocite) and carry them to the surface as a froth, which is collected, thickened, and filtered to produce a fine powder containing 20–30% copper. This concentrate is the global standard feedstock for copper smelters. Pakistan’s Balochistan province hosts copper sulphide deposits that are processed at flotation plants to produce smelter-grade copper concentrate.

Key Minerals in Concentrate

• Chalcopyrite (CuFeS₂) — dominant copper mineral

• Bornite (Cu₅FeS₄) — secondary copper mineral

• Chalcocite (Cu₂S) — high-grade copper mineral

• Pyrite (FeS₂) — iron sulphide (minor inclusion)

Industrial Uses

• Primary copper smelting: Standard feedstock for flash smelters (Outotec), reverberatory furnaces, and Isasmelt/Ausmelt top-submerged-lance furnaces to produce copper matte (45–65% Cu), which is then converted to blister copper (98.5% Cu), fire-refined to anode copper (99.5% Cu), and electrorefined to LME Grade A cathode (99.99% Cu)

• Precious metals recovery: Gold and silver are collected in anode slime during electrorefining and recovered as doré bars — precious metal credits are a significant revenue component of copper concentrate

• Sulphuric acid co-production: SO₂ gas from smelting off-gas is captured and converted to sulphuric acid in acid plants — a major co-product used in fertilizer, chemical, and hydrometallurgical industries

• Custom smelting and toll processing: Concentrate is sold to custom smelters under TC/RC (treatment charge / refining charge) contracts, where the smelter processes the material and returns refined copper and precious metals to the seller

• Blending feedstock: Smelters blend concentrates from multiple origins to optimize furnace feed chemistry, manage penalty elements, and maximize throughput

Quality Assurance

Each lot includes a Certificate of Analysis reporting Cu, Fe, S, SiO₂, Au, Ag, As, Pb, Zn, Bi, Sb, Hg, Se, Te, Cl, F, moisture, and particle size distribution. Assays are performed by internationally accredited laboratories (ISO 17025). Settlement assays follow standard umpire procedures. Pre-shipment samples are provided for buyer approval. Third-party inspection (SGS, Intertek, Alfred H. Knight, Alex Stewart, or equivalent) can be arranged for sampling, weighing, and moisture determination at loading port.
